Electric Actuator

• Press formed stainless steel 304 material that is lightweight, robust and has high corrosion resistance.
• With spring loaded cams, limit positions can be easily set without tools.
• High visibility dome indicator with a double sealed structure prevents water ingress in case of a dome failure.
• Stainless steel 316L option.
• Permanent laser marking nameplate.
• Flag type indicator option.

HPY Pneumatic Actuator
Output Torque
2,744 to 212,4180 in-lb (310 to 240,000 Nm)
Temperature Range
-40°F to 302°F (-46°C to 149°C)
Inlet Supply Pressure
40 - 150 psi (2.8 - 10.3 bar)

2W311-10-40 2W311-10-42 S2W311-10-50 S2W311-10-52 2W312-10-40 2W312-10-42 S2W312-10-50 S2W312-10-52 2W511-10-40 2W511-10-42 S2W511-10-50 S2W511-10-52 2W512-10-40 2W512-10-42 S2W512-10-52

2W312-10-S
2W512-10-S
2W522-10-S
3W522-10-S
2W312-10
2W512-10
2W522-10
3W522-10
2W311-10
2W511-10
2W521-10
3W521-10
2W311-10-40/42
S2W311-10-50/52
2W312-10-40/42
S2W312-10-50/52
2W511-10-40/42
S2W511-10-50/52
2W512-10-40/42
S2W512-10-50/52

Function 3/2 , 5/2 and 5/3 solenoid and air operated valves.
Manual override Locking manual override standard on all solenoid operated versions.
Design Pilot operated spool valve with combined pneumatic and spring return.
Mounting For direct mounting on NAMUR interface.
Mounting position Any position.
Material specifications Aluminium body. Stainless steel is available.
Media Dry or lubricated air
Fluid temperature Min. 32°F (0 °C) Max. 122°F (+ 50 °C)
Electrical parts See information of coils.
Voltage 24 VDC, 48 VDC, 110 AC, 220 AC
Voltage tolerance ± 10% of nominal

S pneumatic actuator
Product performance:
Stainless steel actuator with electrolytic polishing on the surface, smooth and beautiful, strong corrosion resistance, suitable for engineering environments with extremely high corrosion resistance requirements.
The double piston toothed gear rack design has a compact structure, symmetrical installation position, convenient change of output shaft rotation, long service life, and fast action.
The back of the piston rack is equipped with composite bearings and guide rings, which have accurate movement, low friction coefficient, and extended service life.
Combined pre loaded coated spring with long service life and strong corrosion resistance.
High precision gears and racks, with small meshing clearance, high accuracy, and high output power.
Stainless steel fasteners, safe and aesthetically pleasing, with strong corrosion resistance.
Adopting international standard dimensions: output shaft groove, screw hole; The size of the top mounting hole complies with NAMUR standards; The size of the air source interface meets the NAMUR standard

SIMMEL Three position actuator provide an operation of 0°, 45°, 90°or 0°, 90°, 180°, The midway position is achieved by a mechanical stop of movement on the 2 auxiliary pistons. This midway stop positions adjustable. Example:
90°actuator can provide 20°, 30°, 40°, 50°, 70°etc.

Valve air unit essential to provide clean and dry supply air to valve positioners, solenoid valves and pneumatic actuators.
Simmel's Type 50 & Type 100 Filter Regulators are reliable precision units designed for instrumentation and general purpose use in both standard environments (Type 50), and corrosive environments (Type 100).

Stainless steel actuator
SS304, SS316 stainless steel actuators, with electrolytic polishing on the surface, smooth and beautiful;
Double piston toothed gear rack design, compact structure, symmetrical installation position, and easy to change output shaft steering;
The back of the piston rack is equipped with composite bearings and guide rings, which have a low friction coefficient; Combined pre load coated spring;
Gear and rack, with small meshing clearance, high accuracy, and high output power; Stainless steel fasteners, safe and aesthetically pleasing;
Applicable dimensions: output shaft groove, screw hole;
NAMUR standard for top mounting hole size;
NAMUR standard for air source interface size;
The bottom mounting hole size is in accordance with ISO5211 and DIN3337 standards,
Making it easy to install solenoid valve limit switch accessories.
Interface standards:
The interface between the actuator and valve complies with ISO5211 and DIN3337;
The interface between the actuator and control valve (solenoid valve) complies with NAMUR;
The interface between the actuator and signal unit complies with NAMUR;
Travel range and on-off position angle adjustment:
0 °~90 ° ± 5 ° or 0 ° ± 5 °~90 ° (the piston has an adjustment range of ± 5 ° at both ends)

The SIMMEL 512 series declutch override gear box were specially designed used for butterfly valve, ball valve and plug valve together with pneumatic actuators.
This device allows for manual operation during installation, system testing and in the event of supply air-failure.
The SIMMEL 512 Series mount directly to many of the most popular rack and pinion style actuators on the market, and does not require a bracket between the pneumatic actuator and declutch override.
The units come complete with a coupler that connect the pneumatic actuator to the valve.

The Simmel pneumatic valve clutch is applied in the installation, debugging, and manual operation of pneumatic ball valves, butterfly valves, and plug valves when the system loses air or power.
Designed according to the ISO5211 standard, with a reasonable structure and reliable performance, it is an indispensable working component in the pneumatic valve control system.

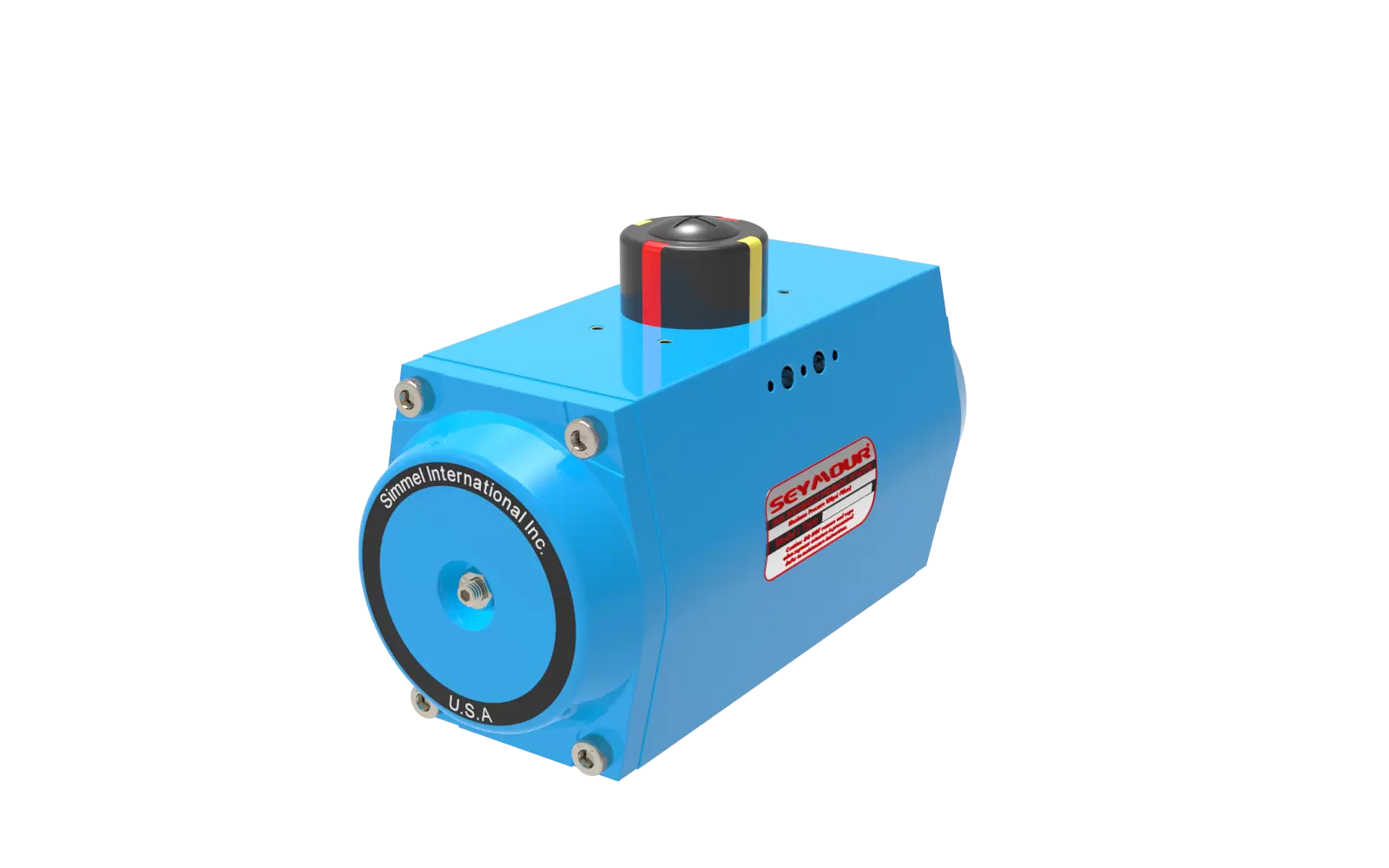

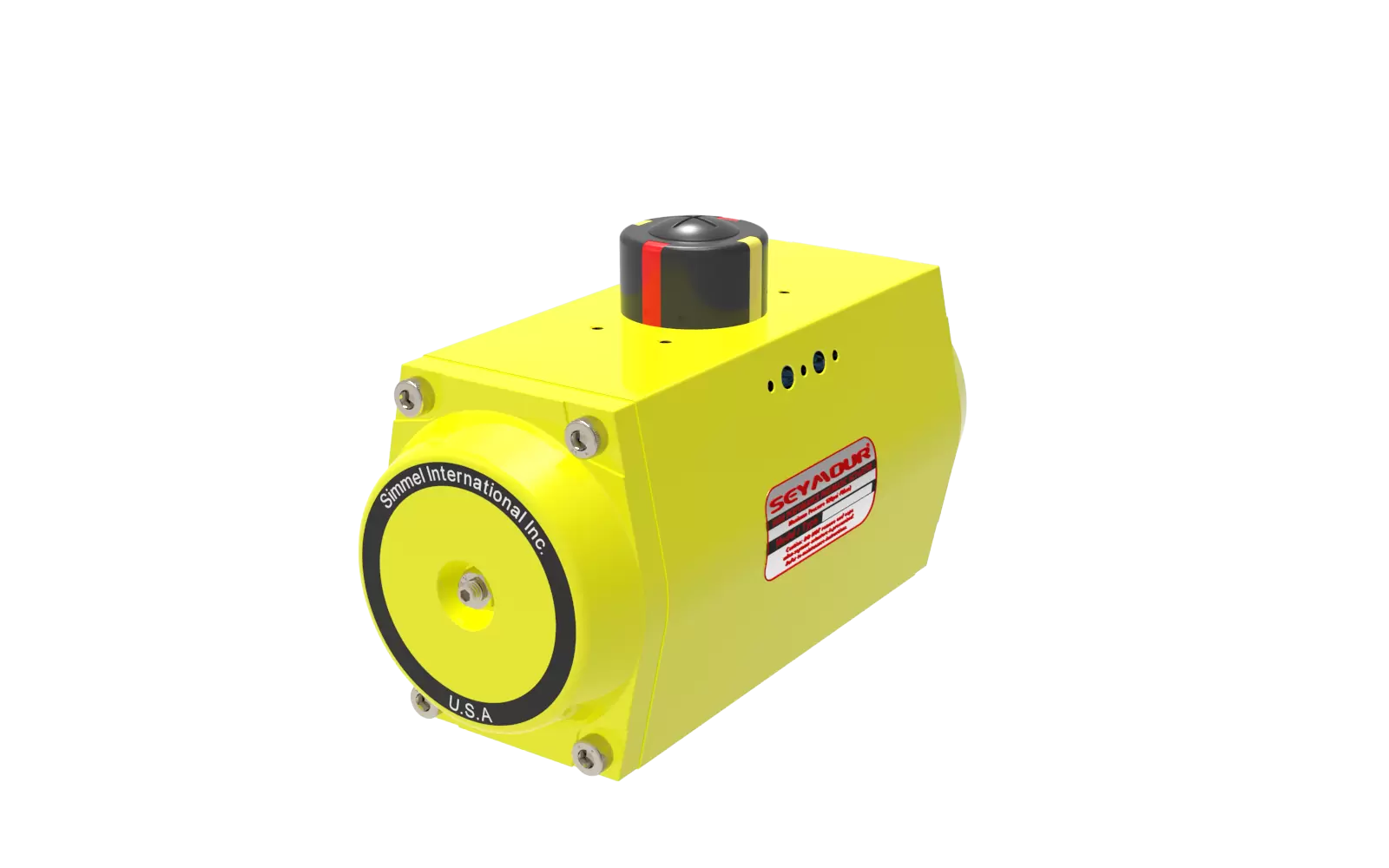

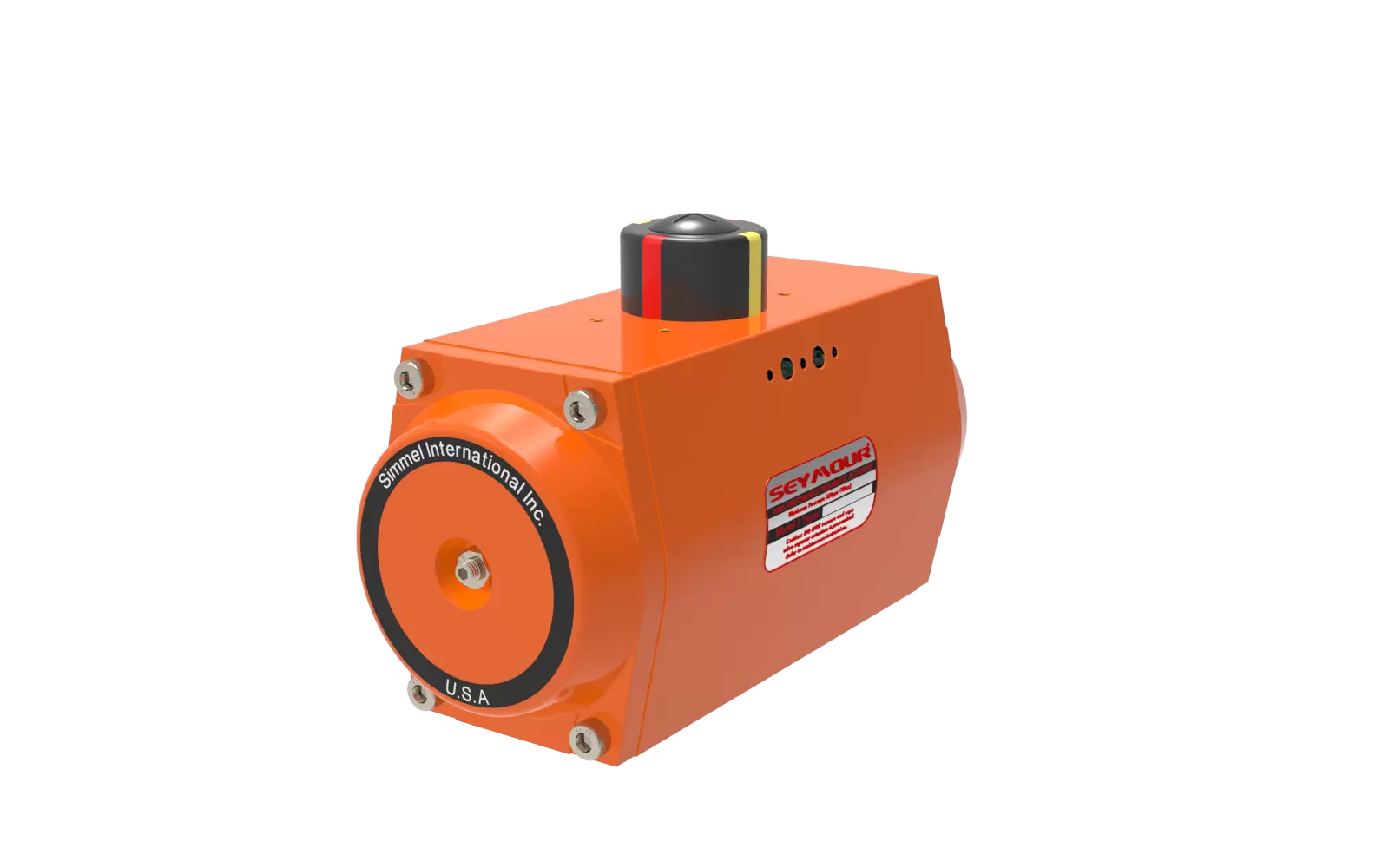

The SIMMEL Rack & Pinion pneumatic actuators are designed for use in quarter-turn applications and are ideal for the on/off or continuous operation of plug,butterfly and ball valves, as well as dampers and other 90° turn devices.
Product offerings include rack and pinion aluminum housed actuators with torque values up to 8,140Nm (72,035 in-lb).
Engineered for reliability and built to last, SIMMEL actuators have a guaranteed service life of 1000000 cycles.
The precision design and quality of our actuators provide long and safe performance for valve control.
SIMMEL engineers and recognized distributors are happy to help you with your automation demands.

Aluminum alloy RT pneumatic actuators:
Action form: double acting/single acting;
Structure: Gear rack structure;
Specifications: 18 different specifications;
Standard travel: 0 ° -90 °;
Special stroke: large stroke: 0 °~180 ° (only double acting);
Three position formula: 0 ° - middle position -90 °; 0 ° - Middle position -180 ° (double acting only)
Applicable occasions: indoor and outdoor;
Torque range: double acting: 3-13022Nm; Single action: 2.9~-4199Nm;
Double acting and single acting actuators have the same size, and can be switched between the two forms of action by installing and removing springs. Spring can be quickly and safely disassembled.
Service life: rated for 700,000 to 1000,000 million actions;

High Perfomance Pneumatic Actuator
Output Torque
Double Acting 106 to115,272 in-lb (12 to 13,024 Nm)
Spring Return 97 to 58,273 in-lb (11 to 6,584 Nm)
Temperature Range
-40°F to 300°F (-40°C to 150°C)
Inlet Supply Pressure
Up to 120 psig (8 Bar)
Type Double Acting  Spring Return

Electro Pneumatic Positioner
The Electro-Pneumatic Positioner ST-1000L is used for operation of pneumatic rotary valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20mA or split ranges.
