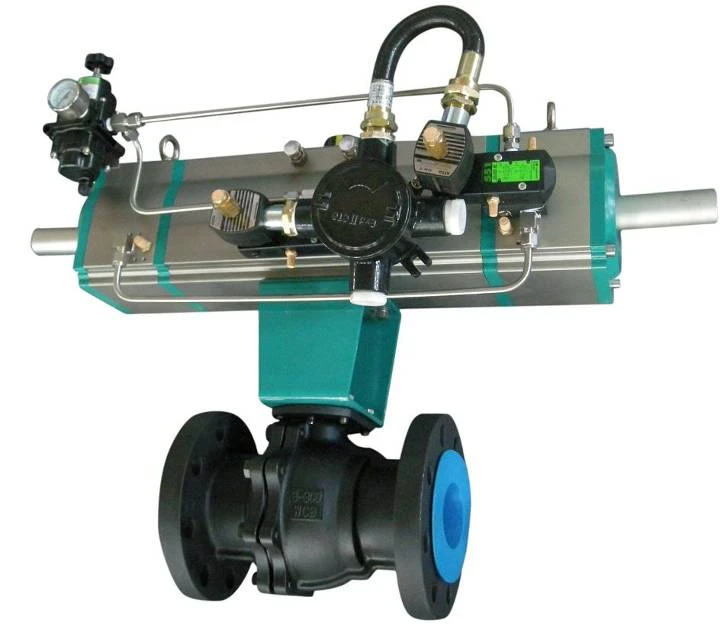

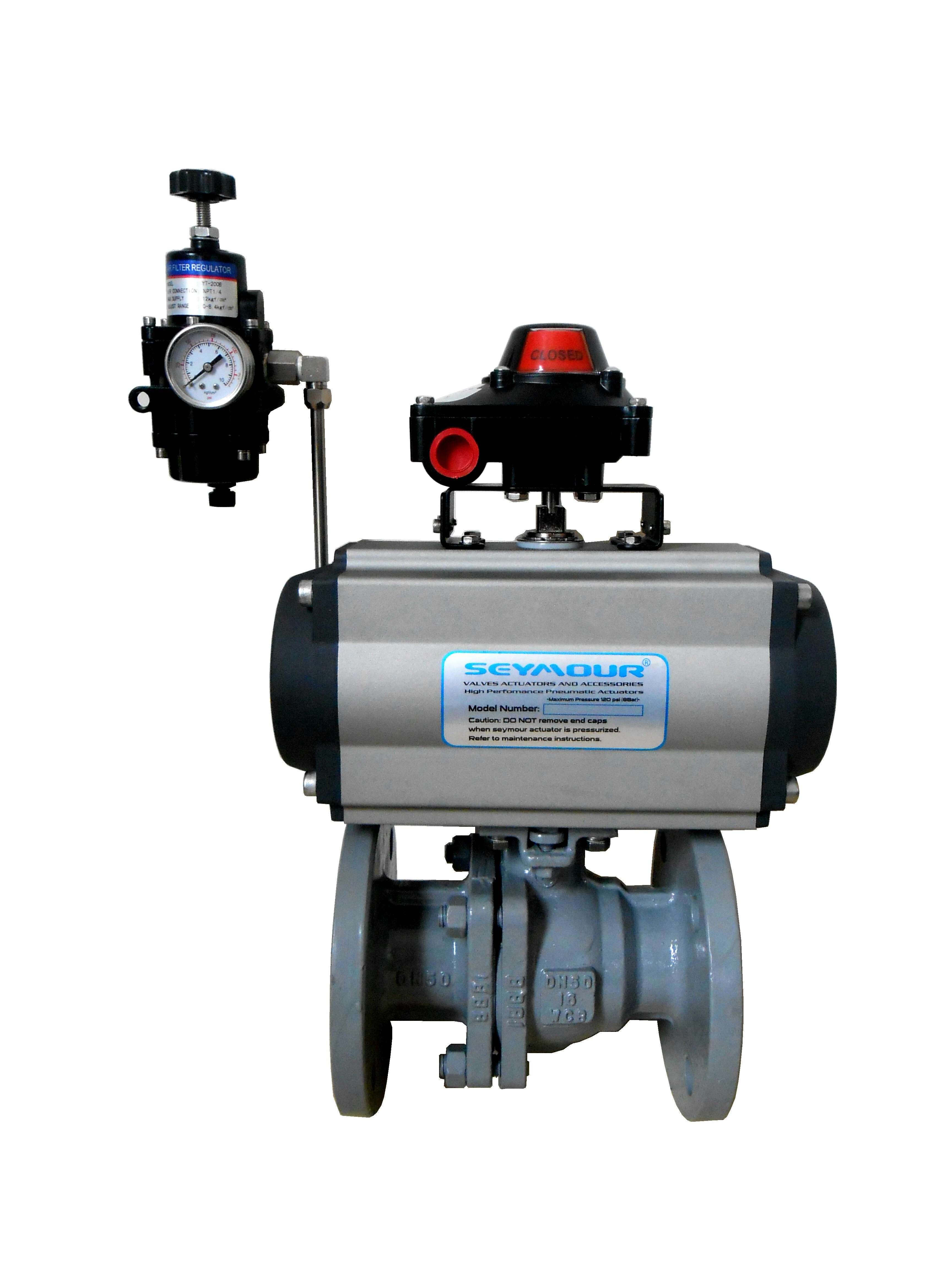

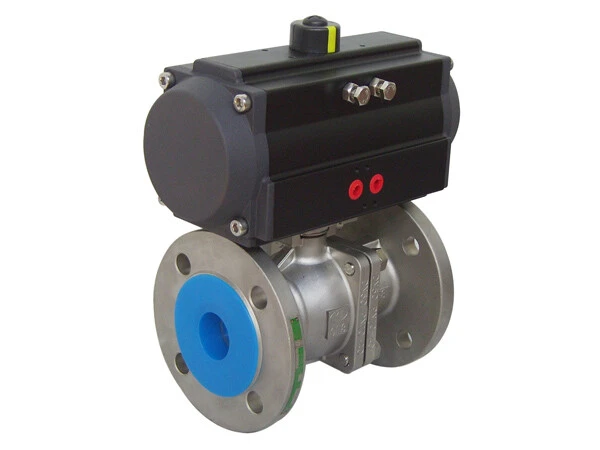

• C15/C30 Ball Valve
    Discover the C15/C30 flange ball valve, designed with an ISO top flange for direct actuator mounting without brackets. This full bore valve offers optional V-port ball for precise control and features a highly polished solid ball with a pressure hole in
  • C15/C30 Ball Valve
  • C15/C30 Ball Valve
  • C15/C30 Ball Valve
  • C15/C30 Ball Valve
C15/C30 Ball Valve

C15/C30 Ball Valve

NPS 1 to 16 / DN 25 to 400
-50°F to +500°F (-46°C to +260°C)
ASME Class 150, 300, 600
EN 1092 PN 10, 16, 25, 40
C15: ASME Class 150
C30: ASME Class 300

SIZES

NPS ½ to 12 / DN 15 to 300

BODY MATERIA

Stainless Steel CF8M, WCB

TEMPERATURE RANGE

-50°F to 650°F (-46°C to 343°C)

STEM MATERIAL

304 of 316 Stainless Steel

PRESSURE RATING

C15: ASME Class 150 C30: ASME Class 300 PN10, 16, 25, 40

SEAT MATERIAL

PTFE, TFM, PEEK, RPTFE

SHUTOFF RATING

Class VI

BALL MATERIAL

CF8M Stainless Steel

BOTY STYLE

Two Piece

DESIGN STANDARD

MSS SP110

CONNECTIONS

ASME Class 150, 300 EN 1092 PN10, 16, 25, 40

TESTING

API 598

ACTUATION

Pneumatic Actuator Electric Actuators Manual and Controls

APPLICATIONS

High Purity, Semi Conductor, Food & Beverage,General Service, Air, Water, Oil & Gas
