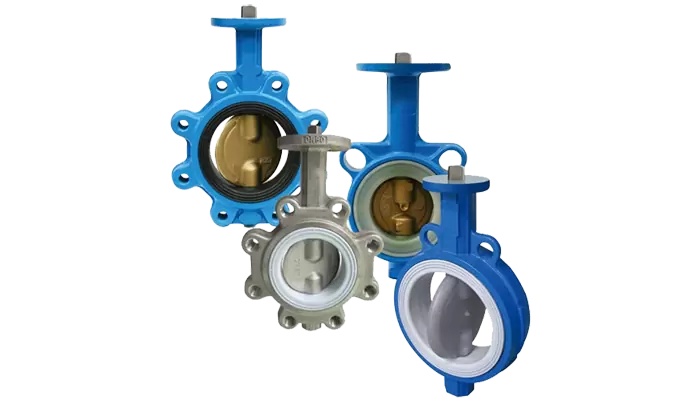

Butterfly valves Resilient Seated, Lined, High Performance, & Triple Offset butterfly valves engineered for reliable performance in the most demanding applications.

Product Type

All
Controls Accessories
Actuators
Ball Valves
Butterfly Valves

Yes

No

wafer butterfly valve, NPS 2-24 valves, DN 50-600 valves, cast iron valves, ductile iron valves, carbon steel WCB valves, stainless steel valves, temperature range valves, industrial valves, fluid control
Discover our range of robust wafer type butterfly valves suitable for NPS 2 to 24 / DN 50 to 600 pipelines. Available in cast iron, ductile iron, carbon steel WCB, and stainless steel, these valves withstand temperatures from -22°F to 320°F (-30°C to 180
Wafer Type Butterfly Valve
Size Range
NPS 2 to 24 / DN 50 to 600
Temperature Range
-22°F to 320°F (-30°C to 180°C)
wafer lug butterfly valve, NPS 2-24, DN 50-600, cast iron valve, ductile iron valve, carbon steel WCB valve, stainless steel valve, temperature range, industrial valves, flow control
Discover our range of high-quality wafer lug type butterfly valves suitable for NPS 2 to 24 / DN 50 to 600 pipelines. Made from cast iron, ductile iron, carbon steel WCB, and stainless steel, these valves are designed for durability and versatility. Oper
Wafer Lug Type Butterfly Valve
Wafer Lug type butterfly valve, with centric disc and bonded liner.
100% bi-directional bubble tight shut off.
Applicable for all kinds of industries, especially shipbuilding, petrochemical, heavy industry, water treament, civil enginerring and dyeing and finishing.
Overall design generally in accordance to BS EN-593
Face to face dimension in accordance to ISO05752, DIN3202
Top flange and shaft end in accordance to ISO-5211
Working pressure from 0.1 bar absolute up to 16 bar (test pressure 17.6 bar)
Working pressure up to 25 bar (test pressure 27.5 bar) on request
Suitable as end of line service valve
DN40 - DN1200
Mounting between flanges to DIN PN10, DIN PN16 or ASME class 150
Other executions on request
flange butterfly valve, NPS 2-24 valves, DN 50-600 valves, cast iron valves, ductile iron valves, carbon steel WCB valves, stainless steel valves, temperature range valves, industrial valves, flow control valves
Discover our range of flange type butterfly valves suitable for NPS 2 to 24 / DN 50 to 600 sizes, crafted from premium materials like cast iron, ductile iron, carbon steel WCB, and stainless steel. These valves offer reliable performance within a wide te
Flange Type Butterfly Valve
Wafer Lug type butterfly valve, with centric disc and bonded liner.
100% bi-directional bubble tight shut off.
Applicable for all kinds of industries, especially shipbuilding, petrochemical, heavy industry, water treament, civil enginerring and dyeing and finishing.
Overall design generally in accordance to BS EN-593
Face to face dimension in accordance to ISO05752, DIN3202
Top flange and shaft end in accordance to ISO-5211
Working pressure from 0.1 bar absolute up to 16 bar (test pressure 17.6 bar)
Working pressure up to 25 bar (test pressure 27.5 bar) on request
Suitable as end of line service valve
DN40 - DN1200
Mounting between flanges to DIN PN10, DIN PN16 or ASME class 150
Other executions on request
rubber lined PTFE, PTFE valves, industrial fittings, cast iron valves, ductile iron fittings, carbon steel WCB, stainless steel valves, temperature range -22°F to 320°F, NPS 2 to 24, DN 50 to 600, high-performance piping solutions
Discover our range of rubber lined PTFE valves and fittings designed for extreme industrial applications. Available in sizes NPS 2 to 24 / DN 50 to 600, crafted from materials like cast iron, ductile iron, carbon steel WCB, and stainless steel, these pro
Rubber lined PTFE
Size Range
NPS 2 to 20 / DN 50 to 600
NPS 14 to 20 / DN 350 to 600
Temperature Range
-20°F to 400°F (-29°C to 204°C)
Maximum Allowable Operating Pressure
175 psi (12 Bar)
150 psi (10 Bar)
high performance butterfly valves, NPS 2-30 valves, DN 50-750 valves, ASTM A216 WCB, ASTM A351 CF8M, ASTM A351 CF8, extreme temperature valves, industrial valves, flow control valves, valve specifications
Discover the ultimate in flow control with our High-Performance Butterfly Valves, available in a wide size range from NPS 2 to 30 / DN 50 to 750. Crafted from premium materials including ASTM A216 WCB and ASTM A351 CF8M/CF8, these valves withstand temper
High Performance Butterfly Valves
Long life & High performance Butterfly Valves
Testing and using indicate that a combination of components yields significantly longer life than a standard configuration valve.
Actual cycle performance is subject to media, pressure and temperature conditions. Applications such as oxygen, nitrogen, hydrogen, water and clean media are ideally suited for option.


